High Speed Automatic Labeling Machine Type RE400 Automatic rotary labeling machine for labeling cylindrical objects. The range of diameters of labeled objects in the standard version is 9 - 36 mm. Standard equipment: - softPLC on embedded PC with Windows 10 (Beckhoff CX 20x0) - 12" HMI color touch screen with 4-level password management and recipe management - Machine speed stepless, speed displayed on the HMI screen in objects per minute . - counter of objects in the feed zone, indication on the HMI - Herma 500 label dispenser for self-adhesive labels: label height: max. 78 mm, label length: max. 100 mm, Maximum label roll diameter: 300 mm, standard core diameter 76, 2 mm By additional agreement, parts of the machine for a labeling reel with a diameter of up to 400 mm and a core (on request) can be developed. - Label roll drive, - Loop pre-winding system, - Motorized liner waste collection unit - One set of replacement parts for one type of object size. Safety cabinet with locking safety mechanism, the machine automatically stops with an error message on the HMI when any door is opened. Processing stations: feeding magazine Labeling station, with object presence control sensor "no object - no labeling". Exit store. The performance of the machine depends on the size of the labeled objects and the length of the label, as well as on the required printing system, the number of characters of variable information.
| Производительность | До 24000 объектов в час |
| Размеры объектов | Диаметр 9-36 мм |
| Скорость машины | бесступенчатая, скорость отображается в объектах в минуту |
| Высота этикеток | макс. 78 мм |
| Длина этикеток | макс. 100 мм |
| Максимальный диаметр рулона этикеток | 300 мм (По дополнительному соглашению могут быть разработаны части машины для этикетировочной бабины диаметром до 400 мм и сердечником (по запросу) |
| Диаметр сердечника | стандартный 76,2 мм (при заказе указать требуемый диаметр, если не стандартный) |
Characteristics
Быстрый просмотр
The Ultra Mixer series are vacuum homogenizers. The main functions are homogenization, emulsification, mixing and defoaming. A mixing part that provides high speed shear for homogenization and a counter-rotating scraper part that mixes the product at low speed. Heating, cooling and vacuum devices are designed to work with various products in the cosmetic, pharmaceutical, food and chemical industries. The high power homogenizer, mounted on the bottom of the tank, works efficiently with small batches. Typically used for low to high viscosity products.
| Объем реактора | Объем: 3 - 5 л; |
| Мощность двигателя | 0,37 кВт |
| Размеры (Д x Ш x В) | 1,100 x 650 x 1,760 (1,900) мм |
Characteristics
Быстрый просмотр
Станция растарки мешков Hanningfield - это система ручной разгрузки продукта из мешков, пакетов и т. д. с одновременным контролем выбросов пыли во время разгрузки.
Обеспечивает быструю, безопасную и легкую загрузку.
Быстрый просмотр
ROTA tunnels are suitable for sterilization and depyrogenation of ampoules, vials and bottles. The availability of various tunnel sizes with different capacities allows you to optimally match the needs of your release forms. Low energy consumption The sterility of containers and closures is an important criterion when filling the solution for injection. Therefore, our high-level technological approach is to achieve the required high temperatures at a constant level by using the principle of heated air flow. Continuous depyrogenation is guaranteed by circulating hot air sterilization in the treatment areas of the tunnel. More than just hot air The ROTA tunnel with integrated control and electronics is characterized by its small dimensions. Optimized air handling based on differential pressure measurements,
| ЗОНА ЗАГРУЗКИ | если моющая машина выдала недостаточное количество контейнеров, или если машина розлива остановилась, автоматически останавливается транспортная лента (с последовательным автоматическим перезапуском для каждой машины), - HEPA-фильтр H14 согласно DIN EN 18 |
Characteristics
Быстрый просмотр
Chromatographic systems are used to separate the desired product from the possible impurities it may contain. This can be molecular size exclusion chromatography, affinity chromatography, ion exchange chromatography or hydrophobic chromatography. Pharmabios manufactures fully automated stations for purification and membrane separation processes. Stations can perform various sub-steps of each cleaning process (using chromatography or membrane filtration methods), as well as cleaning and disinfection steps.
| Диаметр трубки | 1000 л/ч |
Characteristics
Быстрый просмотр

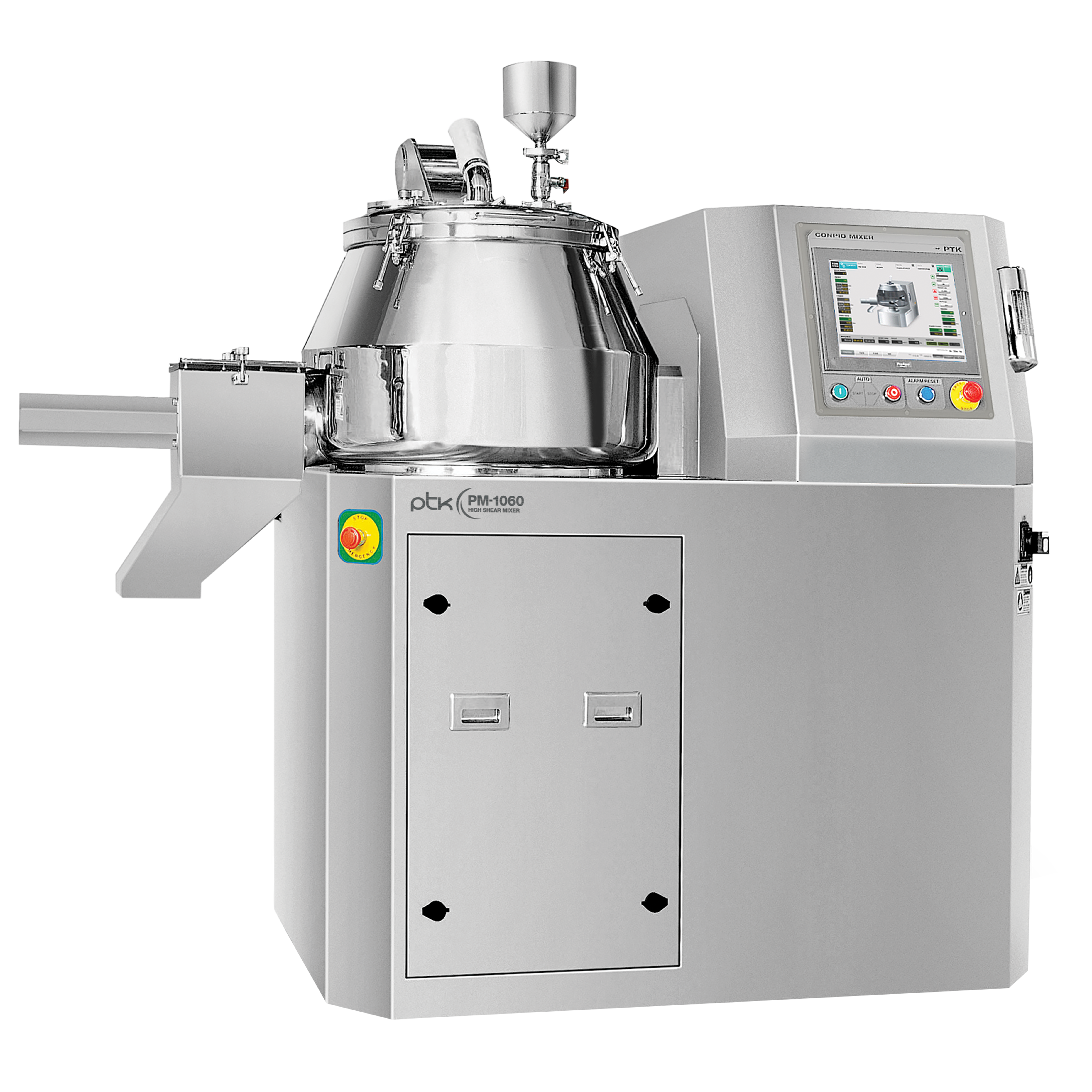

The PM Series PTK High Performance Mixers are designed for fast and efficient mixing of dry mixes and formulations as well as wet granulation using the combined action of paddle, chopper and liquid binders.
The mixing process can be fully automated and adjusted to optimal environmental conditions, guaranteeing exceptional product stability time after time.| Производительность | Производительность [кг]: 273-448; |
| Другие настройки | 2 |
| Объем | Объем емкости [л]: 1,270;Рабочий объем [л]: 390-640; |
| Параметры источника питания | 220/380 В перем. тока, 3 фазы, 50/60 Гц |
| Параметры управления | 24 В постоянного тока |
| Приводной двигатель мешалки [кВт] | 45 |
| Макс. скорость мешалки [об/мин] | 75 |
| Двигатель привода лопастей [кВт] | 15 |
| Макс. скорость лопастей [об/мин] | 3,400 |
| Размеры [мм] | 3,430 x 2,100 x 2,550 |
| Вес [кг] | 3,500 |
Characteristics
Быстрый просмотр
Agitator impeller lift is an option for the PTK high speed mixer. After the WIP process, the air cylinder raises the impeller to facilitate drying.
Быстрый просмотр
The Ultra Mixer series are vacuum homogenizers. The main functions are homogenization, emulsification, mixing and defoaming. A mixing part that provides high speed shear for homogenization and a counter-rotating scraper part that mixes the product at low speed. Heating, cooling and vacuum devices are designed to work with various products in the cosmetic, pharmaceutical, food and chemical industries. The high power homogenizer, mounted on the bottom of the tank, works efficiently with small batches. Typically used for low to high viscosity products.
| Объем реактора | Объем: 15 - 20 л; |
| Мощность двигателя | 2,2 кВт |
| Размеры (Д x Ш x В) | 2,010 x 950 x 1,730 (2380) мм |
Characteristics
Быстрый просмотр
CIP rack and nozzles are an option for the PTK high speed mixer. High pressure water is sprayed through specially placed jets to clean the inside of the tank. The nozzles are easy to remove and reassemble.
Быстрый просмотр
The PTS Powder Transfer System® is a vacuum and pressure based powder transfer system that eliminates the need for gravity unloading. The unique technology allows the transport of powders with different characteristics.
PTS not only provides complete process isolation, but also saves time. The principle of operation ensures that there is no product segregation and particle damage during transfer, and eliminates the risk of electrostatic charge buildup.
The design of the PTS allows CIP/SIP cleaning and sterilization.
More than 5,000 PTS systems are in use worldwide for applications ranging from loading reactors to unloading centrifuges or packing powders in highly isolated environments.
| Другие настройки | 2 |
Characteristics
Быстрый просмотр
The PTK Tablet Press Calibration Kit option allows you to calibrate the load cells installed on the PTK machine. The kit includes some elements for mounting the load cell and a certificate of conformity to national calibration standards.
Быстрый просмотр
The PF-1000H is an automatic capsule filling machine for powders, pellets or tablets, equipped with a WIP washing system, glove ports and inflatable seals for enhanced isolation.
| Производительность | Макс. производительность, порошок [капсул/ч]: 56,700; |
| Другие настройки | 2 |
| Параметры источника питания | 220/380/400/415/440/460 В перем. тока, 3 фазы, 50/60 Гц |
| Параметры управления | 24 В постоянного тока |
| Вес машины [кг] | 2,300 |
| Размер машины [мм] | 1,190 х 1,240 х 2,034 |
| Размеры капсул | Размер капсулы: #00, #0, #1, #2, #3, #4 |
| Макс. Скорость, порошок [об/мин] | 135 |
| Мощность главного двигателя [кВт] | 1.5 |
| Расход воздуха [л/мин] | 600 |
| Сжатый воздух [бар] | 6 |
| Размер шкафа управления [мм] | 650 х 600 х 1,500 |
| Количество сегментных отверстий | 7 |
Characteristics
Быстрый просмотр
Woowon designs customized faucets. They are optimized for product specifications and process performance based on the accumulated know-how of paddle mixer selection. The range we offer ranges from a simple agitator that does not require temperature control to a sophisticated planetary mixer with two sets of agitators that incorporate offset shafts while the mixer bowl remains stationary for very high performance.
| Другие настройки | 2 |
| Объем реактора | Объем: по заказу; |
Characteristics
Быстрый просмотр
Chromatographic systems are used to separate the desired product from the possible impurities it may contain. This can be molecular size exclusion chromatography, affinity chromatography, ion exchange chromatography or hydrophobic chromatography. Pharmabios manufactures fully automated stations for purification and membrane separation processes. Stations can perform various sub-steps of each cleaning process (using chromatography or membrane filtration methods), as well as cleaning and disinfection steps.
| Размеры (мм. ДхШхВ) | 1900 x 1000 x 1600 |
| Диаметр трубки | 1/4 дюйма |
Characteristics
Быстрый просмотр
Automatic labeling machine type RE200 Automatic rotary machine for labeling cylindrical objects with self-adhesive labels. The range of diameters of labeled objects is 9 - 36 mm. Standard equipment: - softPLC on embedded PC with Windows 10 (Beckhoff CX 20x0) - 12" HMI color touch screen with 4-level password management and recipe management - Machine speed stepless, speed displayed on the HMI screen in objects per minute . - infeed magazine equipped with object counter with indication on HMI - Herma 500 label dispenser for self-adhesive labels: label height: max. 78 mm, label length: max. 100 mm, Maximum label roll diameter: 400 mm, core diameter: 76.2 mm standard, (specify required diameter when ordering, if not standard), - with label roll drive, - with loop pre-winding system, - with motorized waste labeling tape collection unit. - One set of interchangeable parts for one type of object size. Safety cabinet with locking safety mechanism. When only one door is open, the machine stops automatically with an error message on the HMI. Processing stations: supply magazine, labeling station automatic label applicator, with sensor control "no object - no label". Output magazine The capacity of the machine depends on the size of the object and the length of the label, as well as the required number of application of variable characters, and for cylindrical objects with a diameter of up to 15 mm, the productivity is up to 12000 / h. The machine is equipped with a label printer for applying variable information to labels
| Производительность | До 12000 объектов в час |
| Размеры объектов | Диаметр 9-36 мм |
| Скорость машины | бесступенчатая, скорость отображается в объектах в минуту |
| Высота этикеток | макс. 78 мм |
| Длина этикеток | макс. 100 мм |
| Максимальный диаметр рулона этикеток | 400 мм |
| Диаметр сердечника | стандартный 76,2 мм (при заказе указать требуемый диаметр, если не стандартный) |
Characteristics
Быстрый просмотр
Labeling machine type RE300 Automatic rotary labeling machine for labeling cylindrical objects. Range of diameters of labeled objects: Diameter 9 - 36 mm. Standard equipment: - softPLC on embedded PC with Windows 10 (Beckhoff CX 20x0) - 12" HMI color touch screen with 4-level password management as recipe management, - Machine speed steplessly adjustable, speed displayed on HMI screen in objects per minute. - The supply magazine is equipped with an object sensor with display of information on the HMI screen - Herma 400 V8L automatic label applicator for working with self-adhesive labels: maximum label height 78 mm, maximum label length 100 mm, Maximum label roll diameter: 400 mm, roll core diameter: 76 , 2 mm standard, (on an additional request, a label feeder can be manufactured for a different diameter of the core and roll, for this it is necessary to specify the required diameters at the time of placing the Order, if they differ from the standard ones), - with a label roll drive, - with a system of preliminary loop winding, - with a motorized waste labeling tape collection unit. - The basic equipment of the machine includes one set of interchangeable parts for one type of object size. Safety cabinet with locking safety mechanism, the machine automatically stops with an error message on the HMI when any door is opened. Processing stations: feeding magazine Labeling station applicator of self-adhesive labels, with a sensor for monitoring the presence of an object "no object - no labeling". unloading store. The performance of the machine depends on the size of the labeled objects and the length of the label, as well as on the required printing system, the number of characters of variable information. For cylindrical objects up to 12 mm in diameter or 1 + 2 ml ampoules, capacity up to 18,000 ampoules per hour. Productivity [ampoules / h] Diameter / output Up to 12 mm 18000 Up to 15 mm 16000 Up to 17 mm 14000 Up to 20 mm 12000 Up to 22 mm 10000 Labeling capacity [vials / h] Diameter Up to 15 mm 16000 Up to 17 mm 14000 Up to 20 mm 12000 Up to 22 mm 10000 Up to 25 mm 9000 Up to 30 mm 8000 Up to 35 mm 7000
| Производительность | До 18000 объектов в час |
| Размеры объектов | Диаметр 9-36 мм |
| Скорость машины | бесступенчатая, скорость отображается в объектах в минуту |
| Высота этикеток | макс. 78 мм |
| Длина этикеток | макс. 100 мм |
| Максимальный диаметр рулона этикеток | 400 мм |
| Диаметр сердечника | стандартный 76,2 мм (при заказе указать требуемый диаметр, если не стандартный) |
Characteristics
Быстрый просмотр
The Ultra Mixer series are vacuum homogenizers. The main functions are homogenization, emulsification, mixing and defoaming. A mixing part that provides high speed shear for homogenization and a counter-rotating scraper part that mixes the product at low speed. Heating, cooling and vacuum devices are designed to work with various products in the cosmetic, pharmaceutical, food and chemical industries. The high power homogenizer, mounted on the bottom of the tank, works efficiently with small batches. Typically used for low to high viscosity products.
| Объем реактора | Объем: 300 - 1000 л; |
| Мощность двигателя | 22 кВт |
| Размеры (Д x Ш x В) | 2,500 x 1,600 x 3,400 (4,500) мм |
Characteristics
Быстрый просмотр
Chromatographic systems are used to separate the desired product from the possible impurities it may contain. This can be molecular size exclusion chromatography, affinity chromatography, ion exchange chromatography or hydrophobic chromatography. Pharmabios manufactures fully automated stations for purification and membrane separation processes. Stations can perform various sub-steps of each cleaning process (using chromatography or membrane filtration methods), as well as cleaning and disinfection steps.
| Размеры (мм. ДхШхВ) | 2000 x 1000 x 1900 |
| Диаметр трубки | 1/2 дюйма |
Characteristics
Быстрый просмотр
PF-2000 is an automatic capsule filling machine for powders, pellets or tablets. Depending on the number of segments, this model has a capacity of 75,000 to 105,000 capsules/hour when filled with powder.
| Производительность | Макс. производительность, порошок [капсул/ч] (10 отв.): 75,000Макс. производительность, порошок [капсул/ч] (12 отв.): 90,000Макс. производительность, порошок [капсул/ч] (14 отв.): 105,000Макс. производительность, пеллеты [капсул/ч] (10 отв.): 45,000Макс. производительность, пеллеты [капсул/ч] (12 отв.): 54,000Макс. производительность, пеллеты [капсул/ч] (14 отв.): 63,000 |
| Другие настройки | 2 |
| Параметры источника питания | 220/380/400/415/440/460 В перем. тока, 3 фазы, 50/60 Гц |
| Параметры управления | 24 В постоянного тока |
| Вес машины [кг] | 1,950 |
| Размер машины [мм] | 1,200 х 1,250 х 1,750 (2,370 вкл. бункер) |
| Размеры капсул | Размер капсулы: #00, #0, #1, #2, #3, #4 |
| Макс. Скорость, порошок [об/мин] | 125 |
| Макс. Скорость, пеллеты [об/мин] | 75 |
| Мощность главного двигателя [кВт] | 1.5 |
| Расход воздуха [л/мин] | 850 |
| Сжатый воздух [бар] | 6 |
| Размер шкафа управления [мм] | 650 х 600 х 1,500 |
Characteristics
Быстрый просмотр
PF-3000 is an automatic capsule filling machine for powders, pellets or tablets. Depending on the number of segments, this model has a capacity of 120,000 to 150,000 capsules/hour when filled with powder.
| Производительность | Макс. производительность, порошок [капсул/ч] (16 отв.): 120,000;Макс. производительность, порошок [капсул/ч] (18 отв.): 135,000;Макс. производительность, порошок [капсул/ч] (20 отв.): 150,000;Макс. производительность, пеллеты [капсул/ч] (16 отв.): 72,000;Макс. производительность, пеллеты [капсул/ч] (18 отв.): 81,000;Макс. производительность, пеллеты [капсул/ч] (20 отв.): 90,000; |
| Другие настройки | 2 |
| Параметры источника питания | 220/380/400/415/440/460 В перем. тока, 3 фазы, 50/60 Гц |
| Параметры управления | 24 В постоянного тока |
| Вес машины [кг] | 2,300 |
| Размер машины [мм] | 1,300 х 1,450 х 1,790 (2,190 вкл. бункер) |
| Размеры капсул | Размер капсулы: #00, #0, #1, #2, #3, #4 |
| Макс. Скорость, порошок [об/мин] | 125 |
| Макс. Скорость, пеллеты [об/мин] | 75 |
| Мощность главного двигателя [кВт] | 3.7 |
| Расход воздуха [л/мин] | 1,000 |
| Сжатый воздух [бар] | 6 |
| Размер шкафа управления [мм] | 650 х 600 х 1,500 |
